FCS電動天棚簾產品結構示意圖
簡介
系 統：面料折疊單循環牽引系統。
動 力：多種管狀電機可選。
傳動方式：鋼絲繩傳動。
導向系統：導軌或鋼絲繩導向。
面料選擇：普通卷簾面料。
開合模式：單開（特定條件下可實行雙開）。
控制方式：可選配無線電、紅外控制系統及手動開關等，亦可實現群控、智能等多種控制方式。

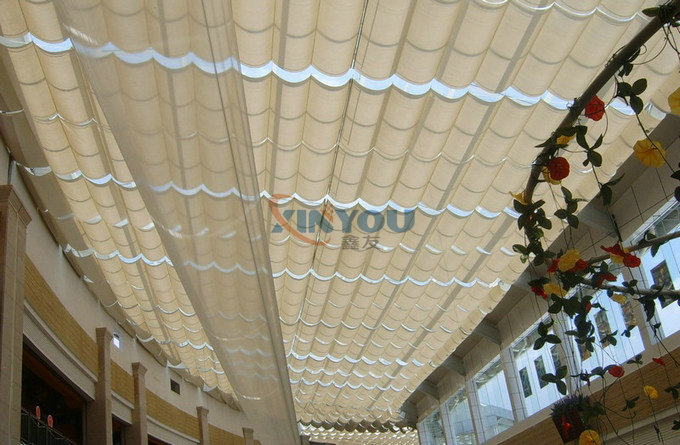

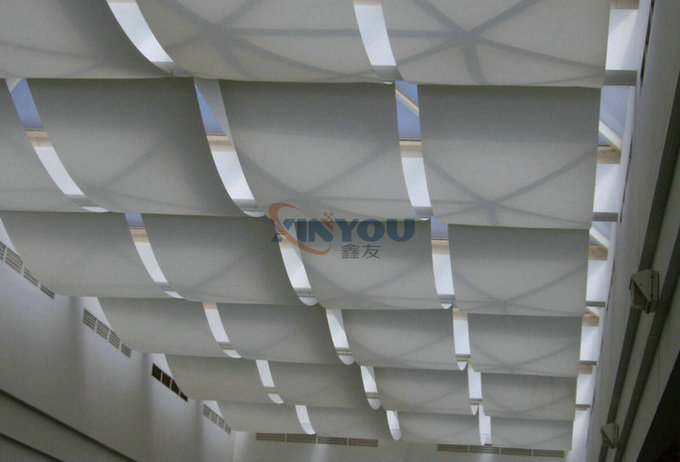

效 果：天棚簾完全展開后，面料呈現均勻的波浪效果。

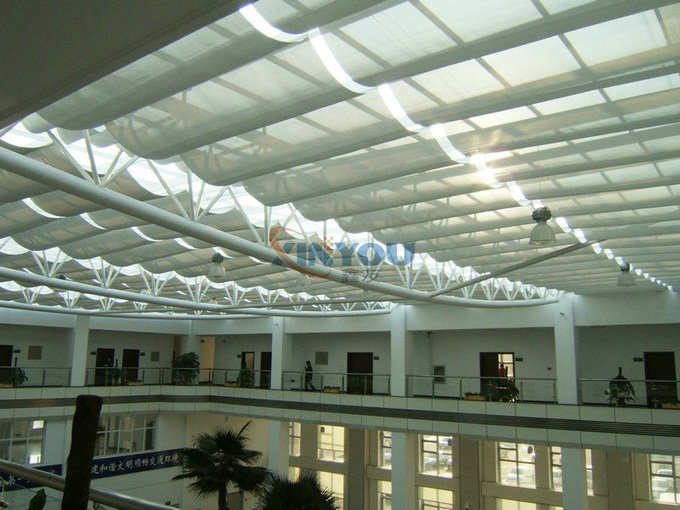

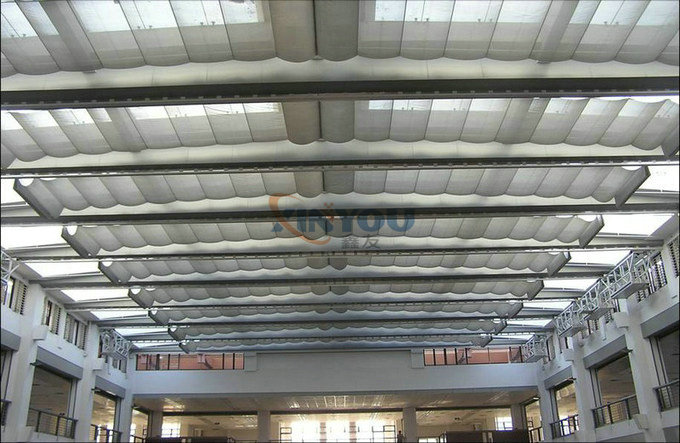

應用場所：大型的遮陽場所，如商務中心、百貨大樓、體育館等公共場所。
|
System: |
Fabric Folding Single Cyclic Drawing System |
|
Dynamic: |
various of tubular motor could be adopted |
|
Drive Mode: |
steel wire transmission |
|
Guidance System: |
The guidance track or steel wire is used |
|
Fabric choice: |
Standard and sunscreen fabric |
|
Open and close model: |
single open ( double open could be realized in certain condition.) |
|
Control Method: |
wireless control, infrared control and manual switch etc. the group control and other intelligent control mode also could be realized. |
|
Effect: |
The fabric looks average wave as the roof blinds spread totally. |
|
Application: Large sunshade project, such as business center, Department store, gymnasium etc. |
|

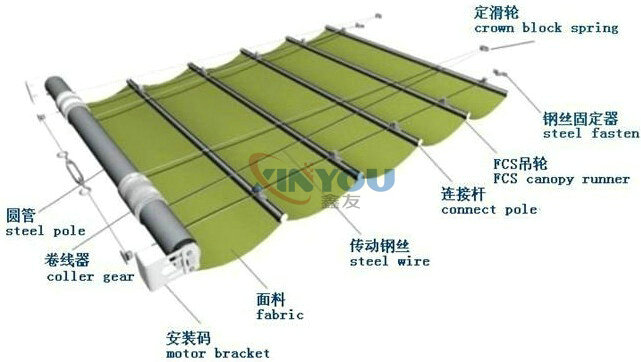

產品結構示意圖
電機參數/Motor Parameters
|
型號 |
電源 |
功率 |
力矩 |
轉速 |
行程 |
|
XY50A-6/22 |
220V 50HZ |
90W |
6Nm |
22rpm |
32/42圈 |
|
XY50A-12/22 |
220V 50HZ |
120W |
12Nm |
22rpm |
32/42圈 |
|
XY50B-6/22 |
220V 50HZ |
90W |
6Nm |
22rpm |
32/42圈 |
|
XY50B-12/22 |
220V 50HZ |
120W |
12Nm |
22rpm |
32/42圈 |
|
XY50-6/17 |
220V 50HZ |
90W |
6Nm |
17rpm |
46圈 |
